CKD Linear Slide Parallel Hands in Chennai, Tamil Nadu, India

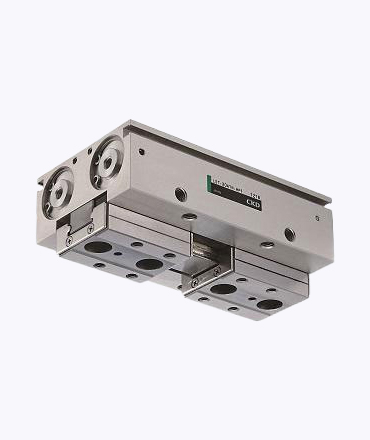

Bore Sizes: Available in φ8×2, φ12×2, φ16×2, φ20×2 configurations, providing flexibility for different workpiece sizes and types.
Operating Stroke Lengths:
- Short Stroke: 8 mm, 12 mm, 16 mm, 20 mm
- Middle Stroke: 16 mm, 24 mm, 32 mm, 40 mm
- Long Stroke: 32 mm, 48 mm, 64 mm, 80 mm
Versatile Design: Offers a range of stroke lengths to handle various workpiece sizes and types effectively.
Low-Profile: Designed to be compact and low-profile, suitable for applications with space constraints.
High Precision: Engineered for precise gripping and handling tasks, enhancing operational efficiency.

Catalogue

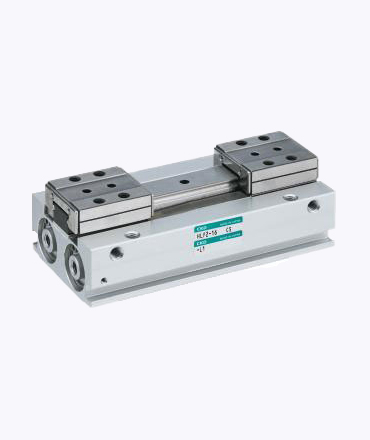

Thin Body Design: Optimized for space efficiency and easy integration into compact systems.
Linear Guide: Incorporates a linear guide mechanism for smooth and precise linear motion during handling tasks.
Multiple Stroke Options: Offers three selectable stroke lengths, allowing customization based on specific application needs.
High Precision: Engineered for accurate and reliable gripping, enhancing operational efficiency and productivity.
Versatility: Suitable for industries requiring precise handling of workpieces across different stroke lengths, ensuring versatility and performance.

Catalogue

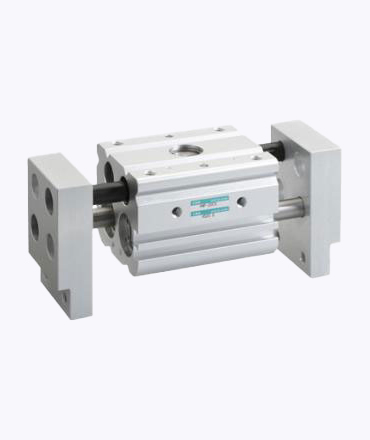

Operation Stroke Lengths:
- HMF:
  - Standard: 30 mm, 40 mm, 50 mm, 70 mm, 100 mm
  - Long Stroke: 60 mm, 80 mm, 100 mm, 120 mm, 160 mm, 200 mm
- HMF-G:
  - Standard: 30 mm, 40 mm, 50 mm
  - Long Stroke 1: 60 mm, 80 mm, 100 mm, 120 mm
Compact Design: Optimized for space efficiency while providing a wide parallel grip capability.
High Precision: Equipped for accurate and reliable handling tasks across various stroke lengths.
Application Flexibility: Suitable for a wide range of industrial applications that require precise and flexible gripping solutions.

Catalogue

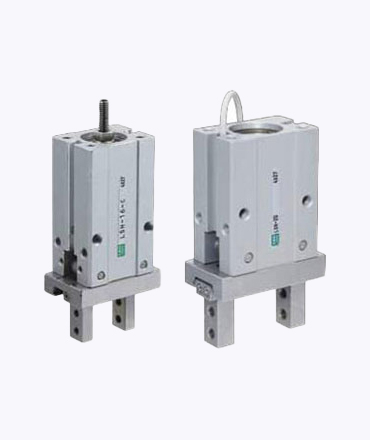

Bore Sizes: Available in φ6, φ10, φ16, φ20, φ25, and φ32 mm configurations, providing options to accommodate different workpiece sizes.
Operating Strokes:
- Standard: 4 mm, 6 mm, 10 mm, 14 mm, 22 mm
- Long Stroke: 8 mm, 12 mm, 18 mm, 22 mm
Linear Slide Mechanism: Ensures smooth and accurate linear motion during handling tasks, enhancing precision and efficiency.
Versatility: Suitable for a wide range of industrial applications that require precise gripping and handling capabilities across different stroke lengths.

Catalogue

Integrated Design: Combines guide rail, master jaw, and hand into a single unit, ensuring high rigidity and stability during handling operations.
Mounting Options: Offers three mounting directions (axial - upper, horizontal, and vertical), providing design flexibility to suit specific application needs.
Operating Stroke Lengths: Provides precise handling with operating stroke lengths of 4 mm, 6 mm, 10 mm, and 14 mm.
High Precision: Engineered for accurate and reliable gripping, enhancing operational efficiency and productivity.
Versatility: Suitable for industries requiring precise handling of workpieces in various orientations and environments.

Catalogue
